Vacuum GlassGrip

Overview

The Aardwolf Vacuum GlassGrip range has been developed to meet the demands of lifting, rotating, and precise positioning of glass in construction works, architectural glazing installations, insulated glass units, and modern façade systems.

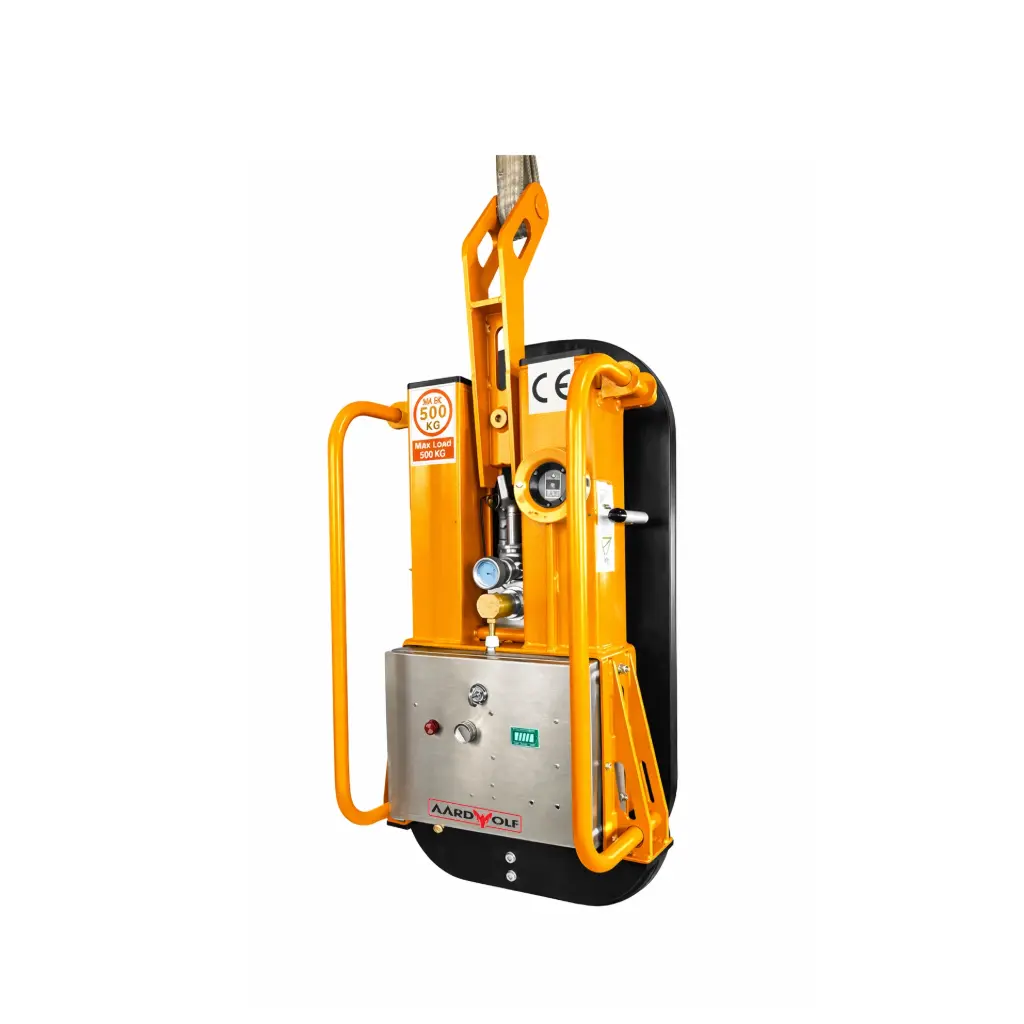

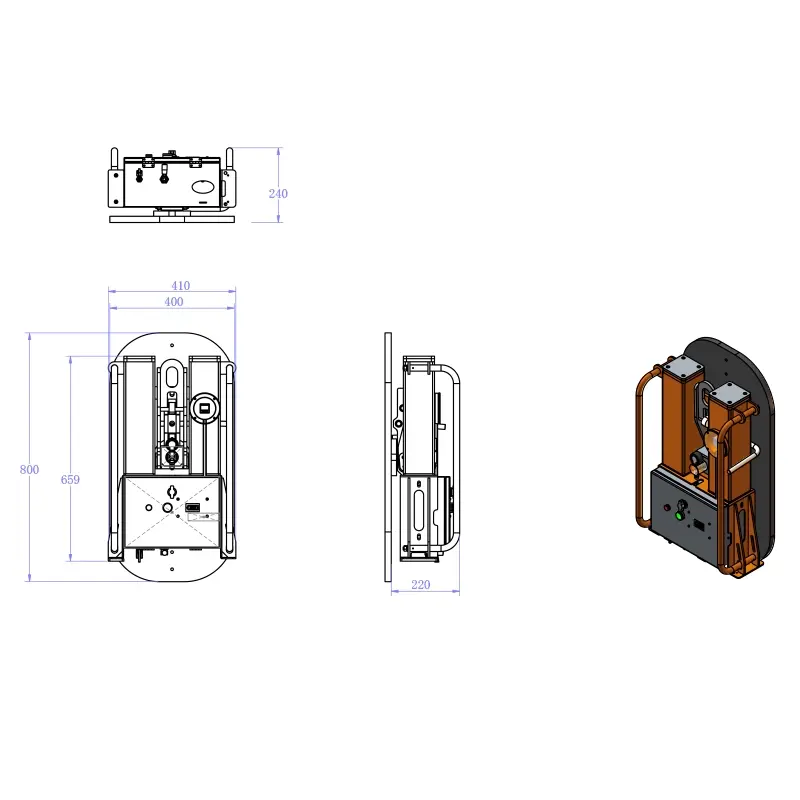

The VGG500 is a compact, lightweight, and easy-to-use glass lifting device, ideal for common glass installation tasks. It operates with a DC vacuum pump combined with a DC battery, eliminating the need for external power supply or compressed air. The unit supports 90° tilting and 360° rotation, and is equipped with a vacuum pressure display and battery indicator for safe operation monitoring. An integrated trolley allows convenient movement between job sites.

Features

• Compact design for easy operation
• Lifting capacity of 500 kg
• 90° tilting and 360° rotation
• Fully self-powered with no external power source required
• Vacuum pressure display and battery indicator
• Automatic vacuum pressure compensation system

Applications

• Installation of glass doors and interior glass partitions
• Handling of small to medium-sized glass panels
• Small-scale residential and commercial projects
• Glass workshops requiring a mobile lifting solution
