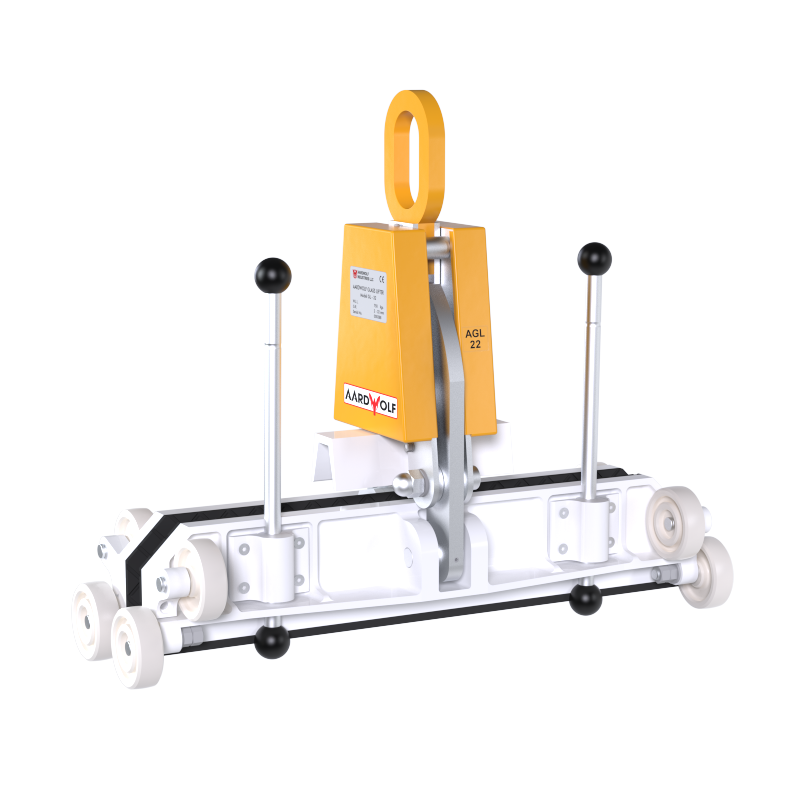

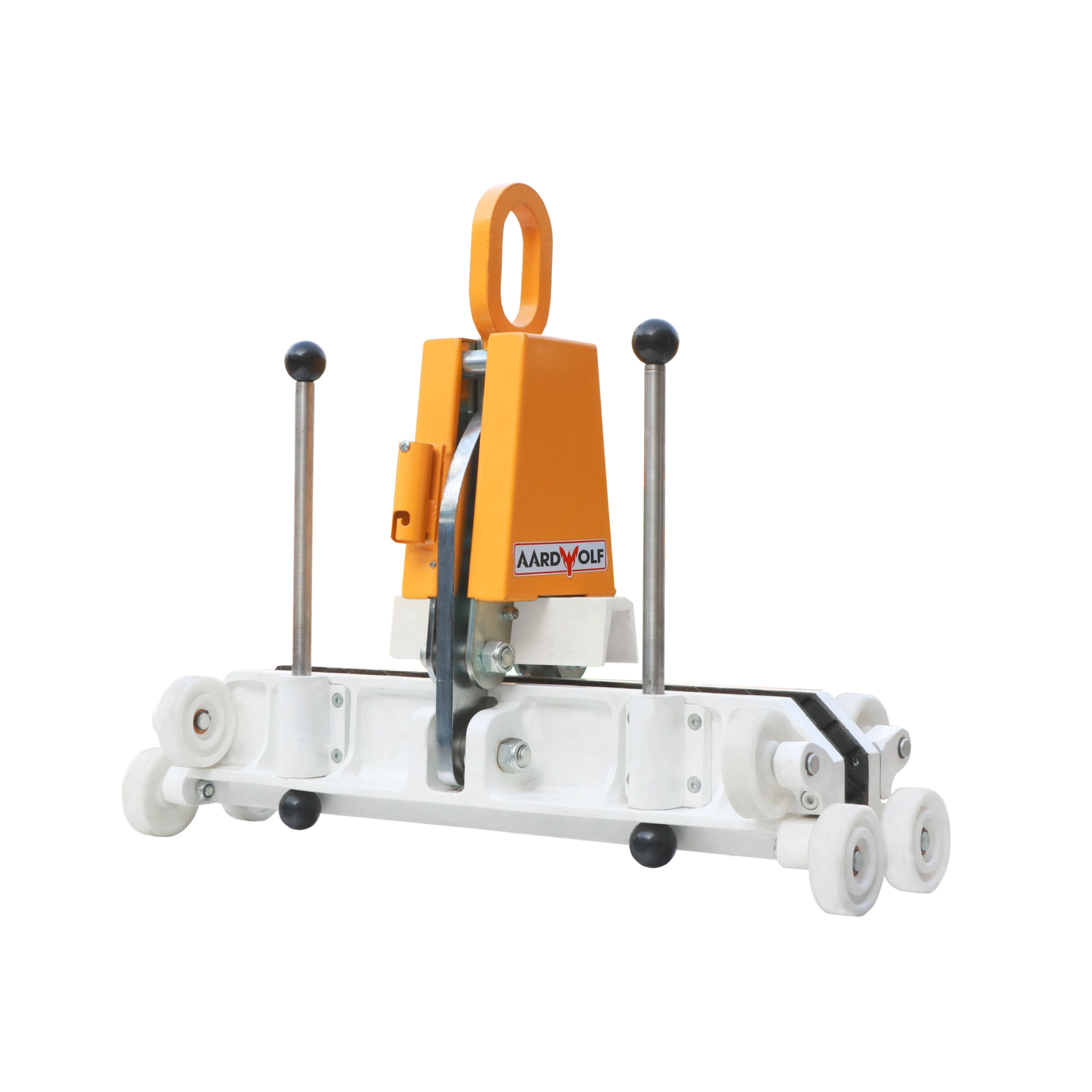

Glass Lifter AGL22

Overview

The Aardwolf AGL22 is a mechanical glass lifter designed for lifting and handling flat glass sheets with thicknesses from 2–22 mm. It is ideal for glass fabrication shops, storage facilities, and installation projects where repetitive lifting operations require consistent, reliable performance.

The AGL22 automatically grips the glass as lifting begins and releases it automatically once the glass is fully supported. Integrated side support arms help keep the glass upright, minimise unwanted movement, and improve control during transport and positioning.

With a 750 kg Working Load Limit, the AGL22 provides a dependable mechanical lifting solution without requiring electricity, batteries, compressed air, or hydraulic power.

Key Features

• 2–22 mm grip range: Suitable for commonly used flat glass thicknesses.
• Automatic gripping and release: Automatically grips during lifting and releases when the load is fully set down.
• Integrated side support arms: Help keep glass upright and improve handling stability.
• Gravity-operated mechanical mechanism: Automatically activates during lifting without manual locking.
• Fully mechanical design: Requires no external power source.
• 750 kg Working Load Limit: Designed for professional glass handling applications.

Why Choose Aardwolf?

• Original sliding-jaw mechanism: Helps maintain stable jaw movement throughout the lifting cycle.
• Rigid guide rods: Support consistent contact between the gripping surfaces and the glass.
• Stable side support system: Improves control when transporting and positioning glass panels.
• Replaceable wear components: Simplify maintenance and help extend equipment service life.

Business Benefits

• Increases productivity during repetitive glass handling operations.
• Reduces manual intervention through automatic gripping and release.
• Helps improve load stability while transporting and positioning glass.
• Supports safer handling of high-value finished glass panels.
• Minimises operating costs with a durable mechanical design that requires no external power.
• Helps maintain efficient workflows in fabrication shops, warehouses, and installation projects.

Applications

• Glass fabrication workshops
• Glass manufacturing facilities
• Flat glass storage
• Glass distribution centres
• Interior glass installation
• Architectural glazing projects
• Material transfer within production facilities
• Overhead crane lifting systems

Frequently Asked Questions

How do the side support arms improve glass handling?

The side support arms help keep the glass in an upright position, reduce unwanted movement during transport, and provide better control when positioning the panel.

Why must the glass surface be clean and dry before lifting?

The lifter relies on friction between the gripping pads and the glass surface. Water, oil, dust, or other contaminants can reduce friction and affect gripping performance.

How does the automatic gripping mechanism improve productivity?

The AGL22 grips the glass automatically when lifting begins and releases it automatically after the load is fully set down. This reduces manual handling and speeds up repetitive lifting operations.

What should be inspected before each lift?

Inspect the gripping surfaces, side support arms, lifting eye, locking mechanism, and the overall condition of the lifter. Do not use the equipment on cracked, damaged, or unstable glass panels.

What warranty is provided with the AGL22?

The AGL22 is covered by a 2-year limited warranty, subject to Aardwolf's warranty terms and conditions.
