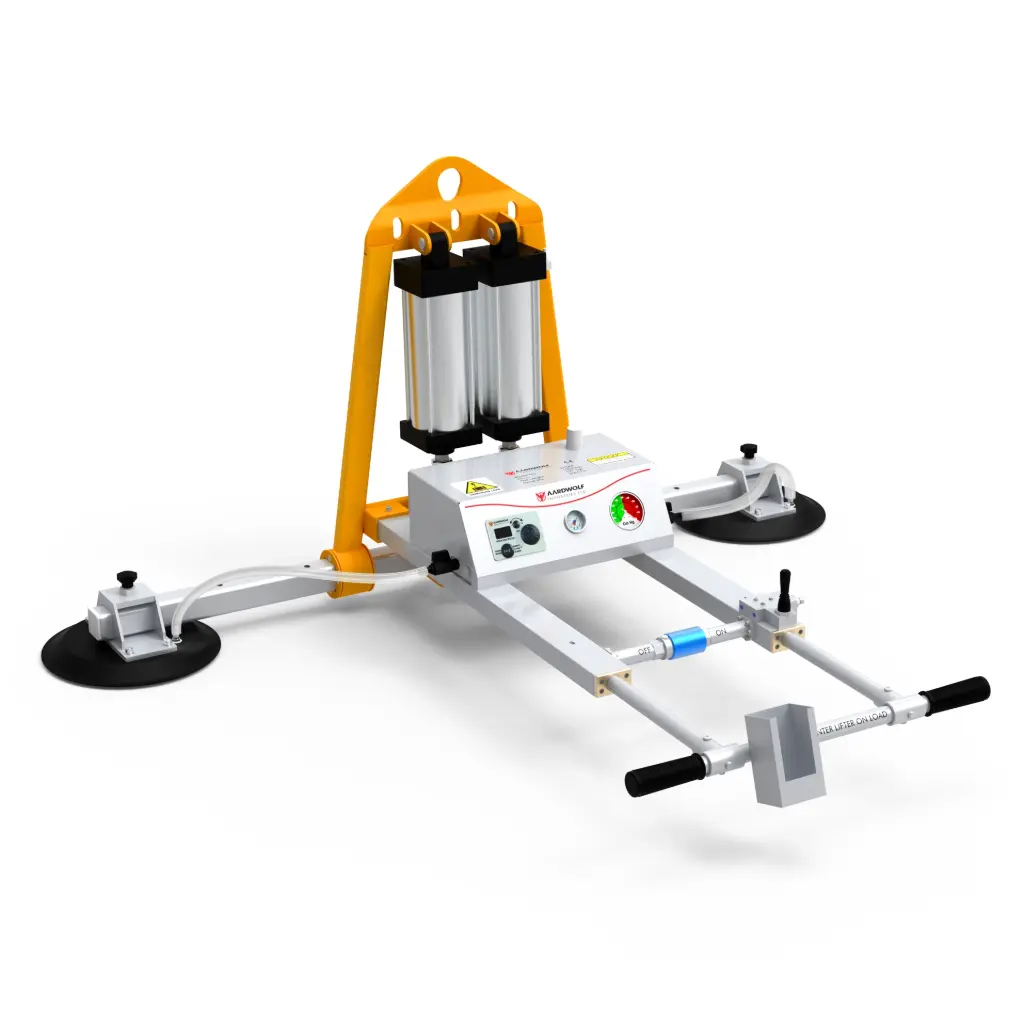

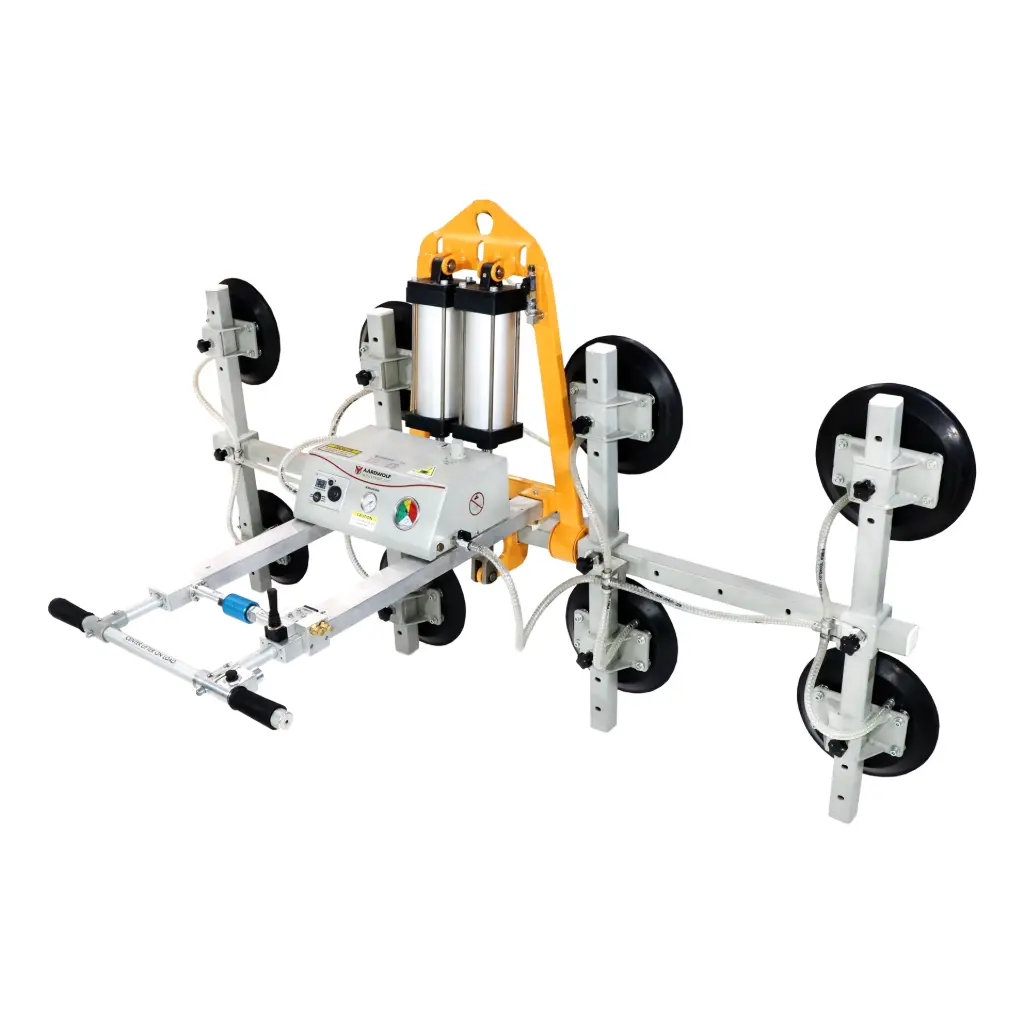

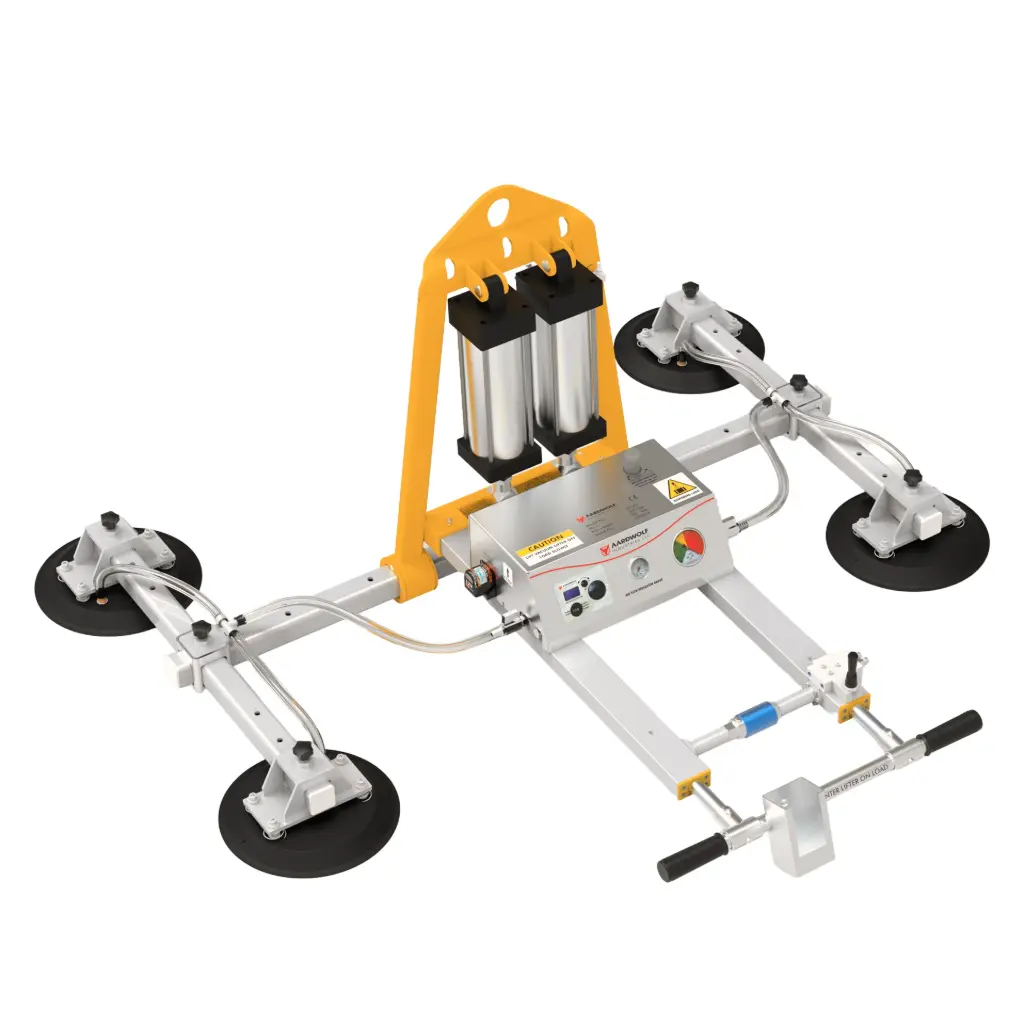

AVGLP Vacuum Glass Lifters

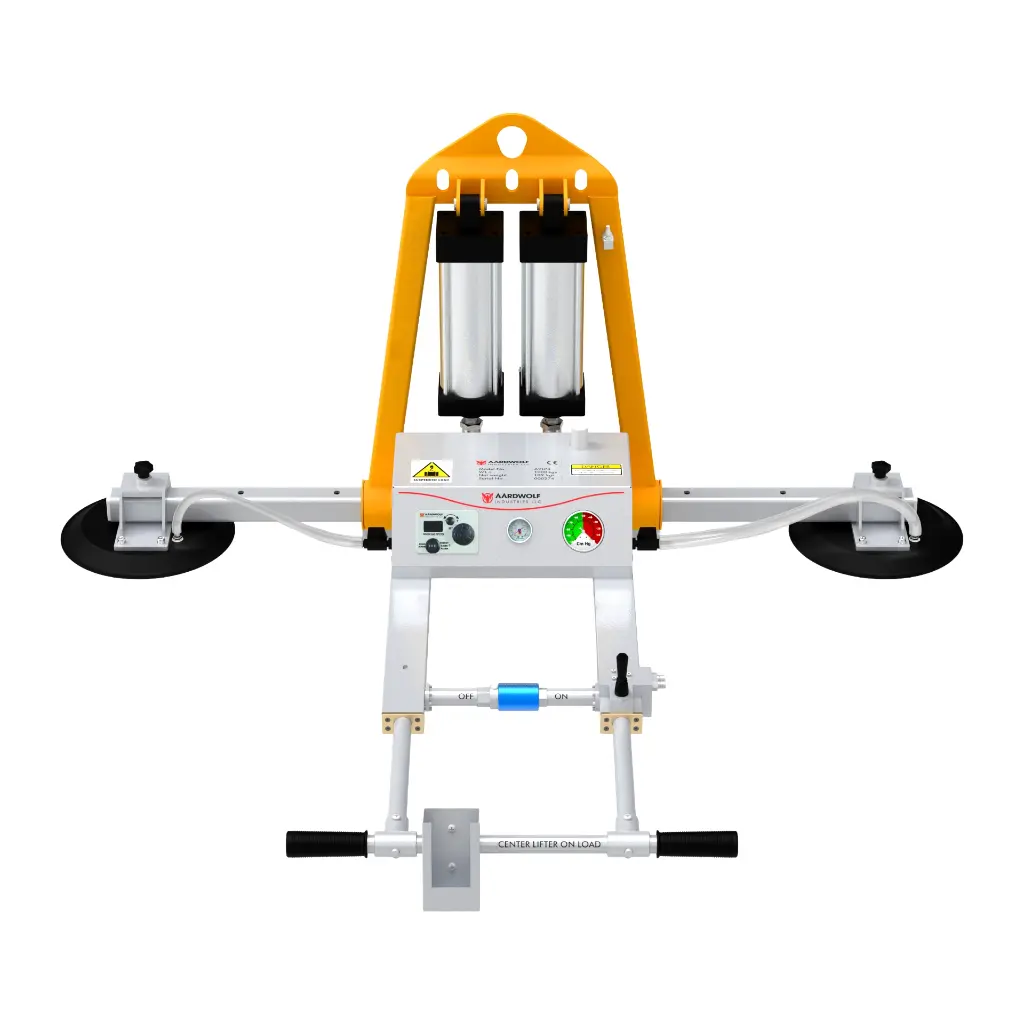

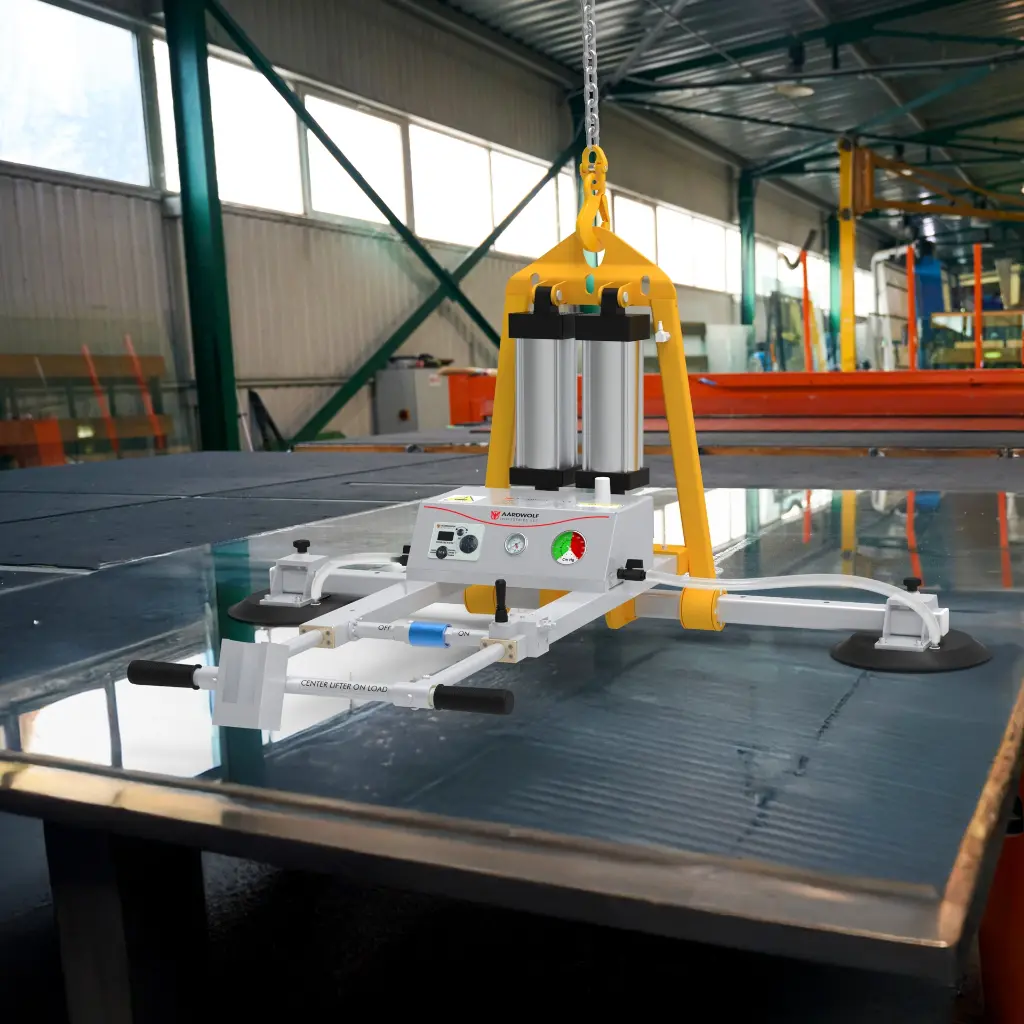

AVGLP Vacuum Glass Lifter - AVGLP2-200

General

Aardwolf Vacuum Glass Lifters (AVGLP series) are pneumatic-powered devices for lifting, tilting, and positioning glass and porcelain sheets in workshops, factories, and construction sites. Built for both smooth and textured surfaces, these lifters provide safe vertical-horizontal tilting from 0° to 90°, enabling precise handling for installation or transport.

Models in the series vary in pad quantity and lifting capacity, from compact units for lighter panels to multi-pad lifters for large, heavy sheets—offering options to match different materials and job requirements. Powered by compressed air, each unit includes a backup vacuum system to maintain grip during power loss, along with a 12V battery for visual and audio safety alarms.

Features

Pneumatic vertical-horizontal tilting from 0° to 90° for versatile handling

Options for manual or pneumatic rotation, depending on model

Automatic vacuum pumping to maintain grip if vacuum loss occurs

Backup 12V battery to power visual and audio safety alarms

Slide valve for quick material attachment and release

Multiple pad configurations available to suit various panel sizes

Rugged steel construction for long-term durability

Suitable for glass, porcelain, and other smooth or textured sheet materials

Specifications

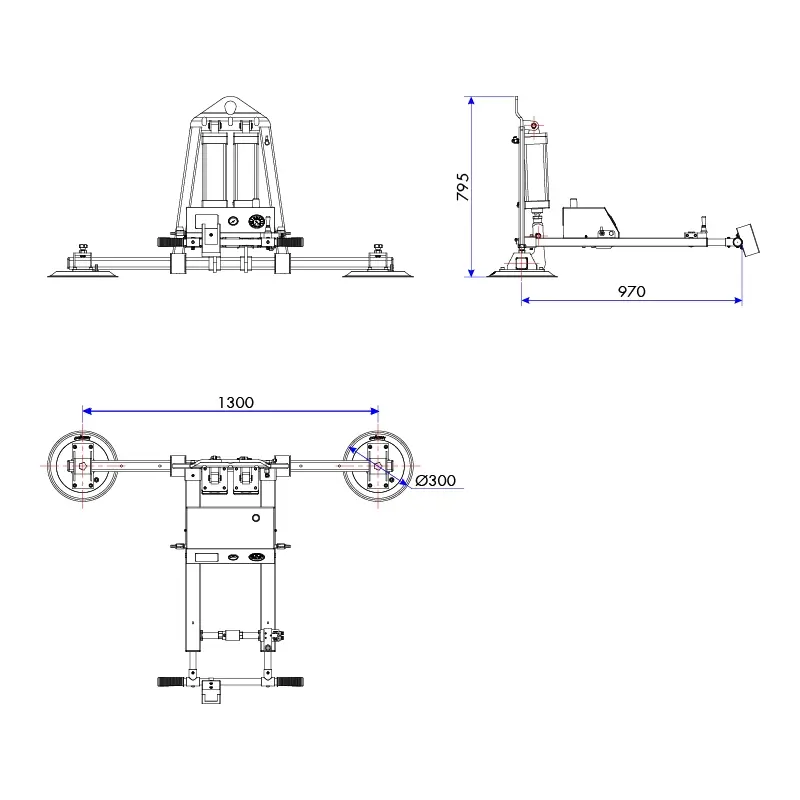

AVGLP2-200	Metric
Number of pads	2
Pad diameter	300 mm
Working load limit	200 kg
Net weight	64 kg
Packaging dimensions	1480 430 960 mm

Battery information for the alarm system

Power supply	3.7V Lipo battery
Battery capacity	2000 mAh x 1
Standby time	720 hours
Charging cycle	1000 times
Complete charging time	2 hours
Non-stop working time	7 hours
