General

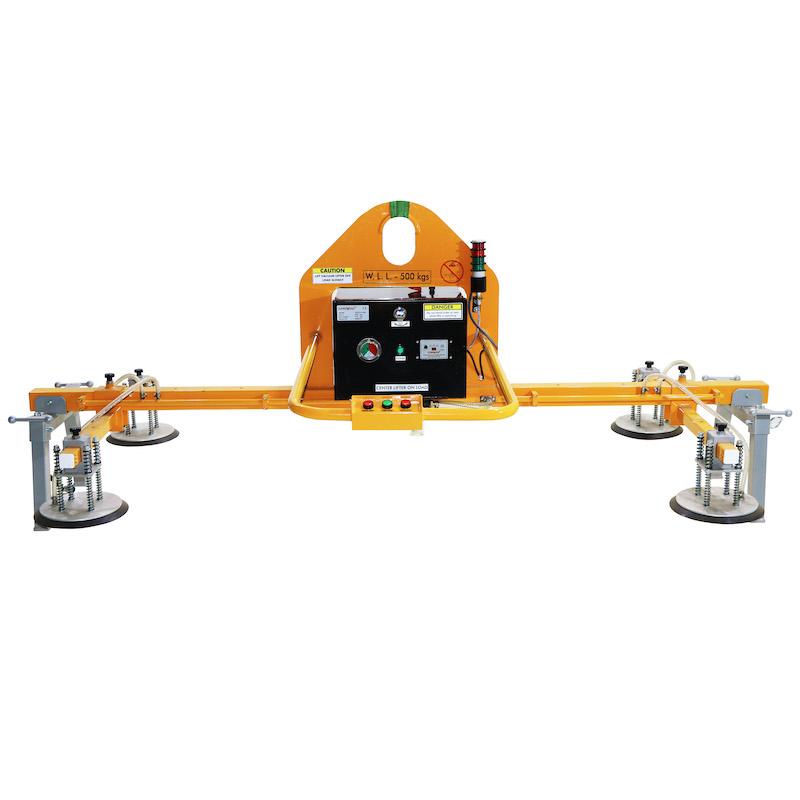

An electric pump motor drives the Aardwolf Electric Vacuum Lifter model AEVLP4-500 and is suitable for handling large metal sheets. It features the ability to adjust the main beam and vacuum pads for a variety of sheet sizes. The lifter’s working load limit is up to 500kg with material sizes up to 3000x1500mm.
Features
- Audio-visual safety system.
- When pressure is lost, the pressure switch control system automatically starts the vacuum pump.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 4 | – |
| Pad diameter | 300 mm | 11.8″ |
| Working load limit | 500 kg | 1102 lb |
| Net weight | 192 kg | 423 lb |
| Gross weight | 289 kg | 637 lb |

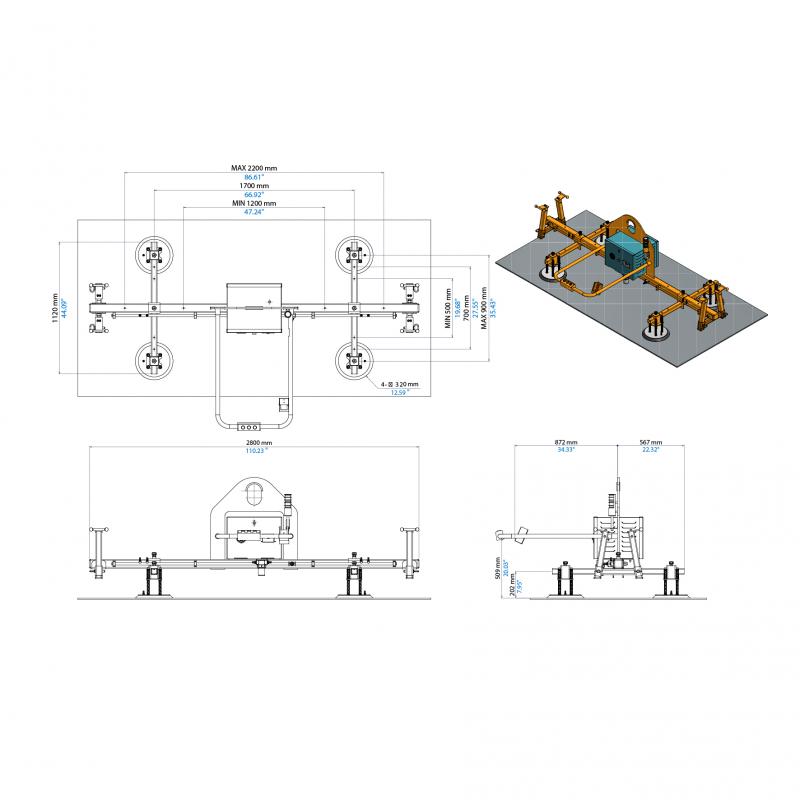

| Packaging dimensions | L.2880xW.570xH.1220 mm | 113.4″x22.4″x48″ |
- Battery information for the alarm system
| Power supply | 3.7V Lipo battery |
| Battery capacity | 2000 mAh x 1 |
| Adapter | DC 5V-1A |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Non-stop working time | 7 hours |
| 6-month warranty | – |
- Motor information
| Input supply | AC 380-3Phase 50/60Hz |
| Vacuum flow rate | 4.1/4.7 m3/hour |
