General

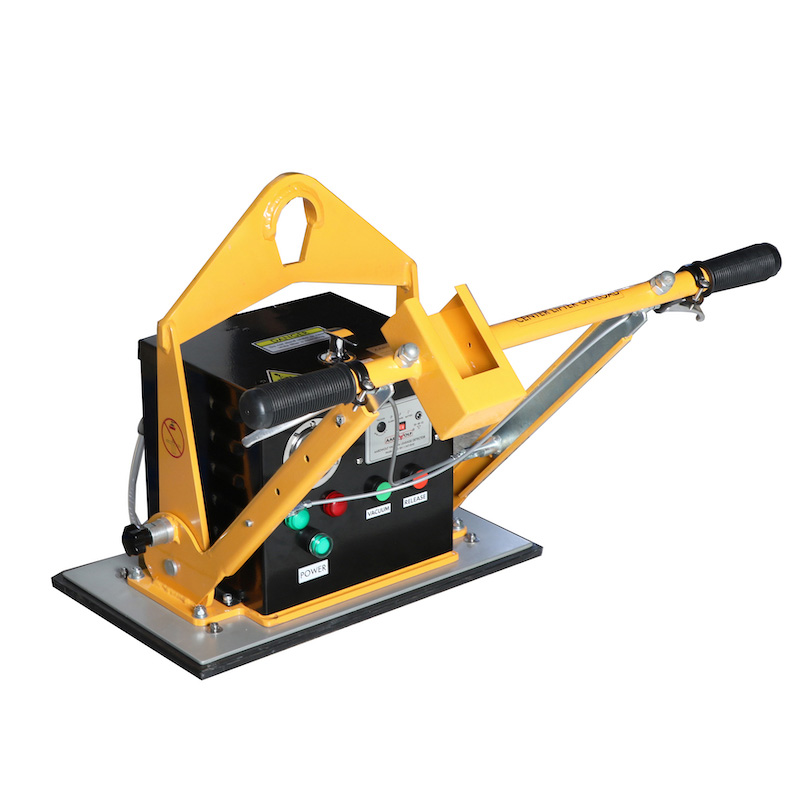

Featuring a sliding valve, the Electric Vacuum Lifter is a powered vacuum lifter that is suitable for securely handling small-sized materials. By means of a vacuum tank, the lifter ensures safe pick-up in the event of a sudden power break to the vacuum pump.
Features
- The metal structure is tilted from 0 to 90° manually.
- Vacuum tank for no risks when lifting/tilting materials.
- Slider valve with an ON/OFF position for attaching materials to the vacuum pads and releasing the materials from the vacuum pads.
- Audio-visual alarm system.
Specifications
|
Metric
|
Imperial
|
|

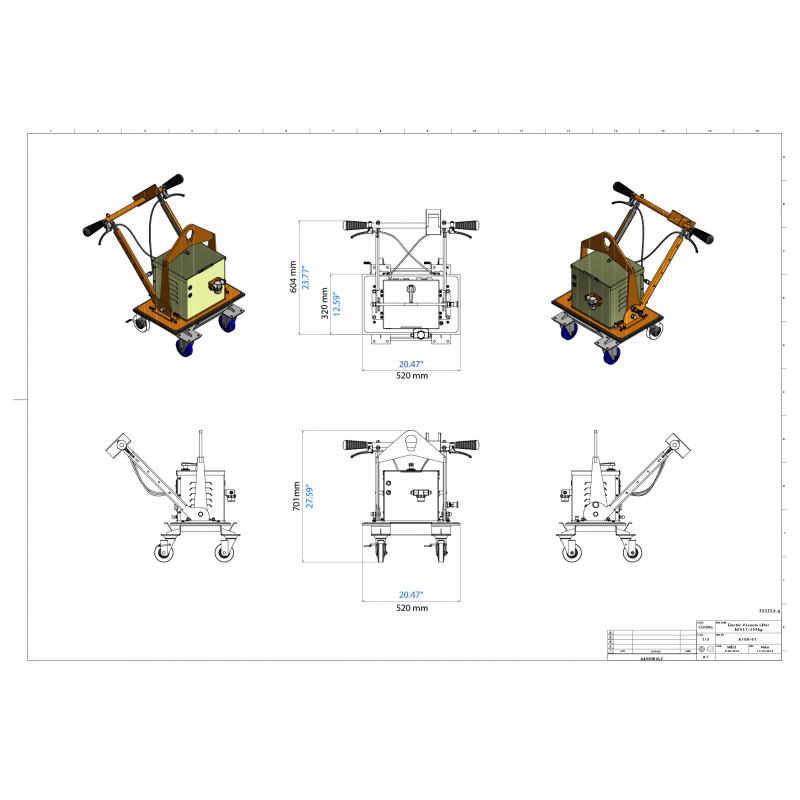

| Pad dimension | 520×320 mm | 20.5″x12.6″ |
| Working load limit | 250 kg | 551 lb |
| Net weight | 35 kg | 77 lb |
| Gross weight | 48 kg | 106 lb |
| Packaging dimensions | L.760xW.660xH.470 mm | 29.9″x26″x18.5″ |
- Battery information for the alarm system
| Power supply | 3.7V Lipo battery |
| Battery capacity | 2000 mAh x 1 |
| Adapter | DC 5V-1A |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Non-stop working time | 7 hours |
| 6-month warranty | – |
- Motor information
| Input supply | AC 220-1Phase 50/60Hz |
| Vacuum flow rate | – |
