Vacuum Tube Lifter AVTL/CF3

Vacuum Tube Lifter - AVTL2

General

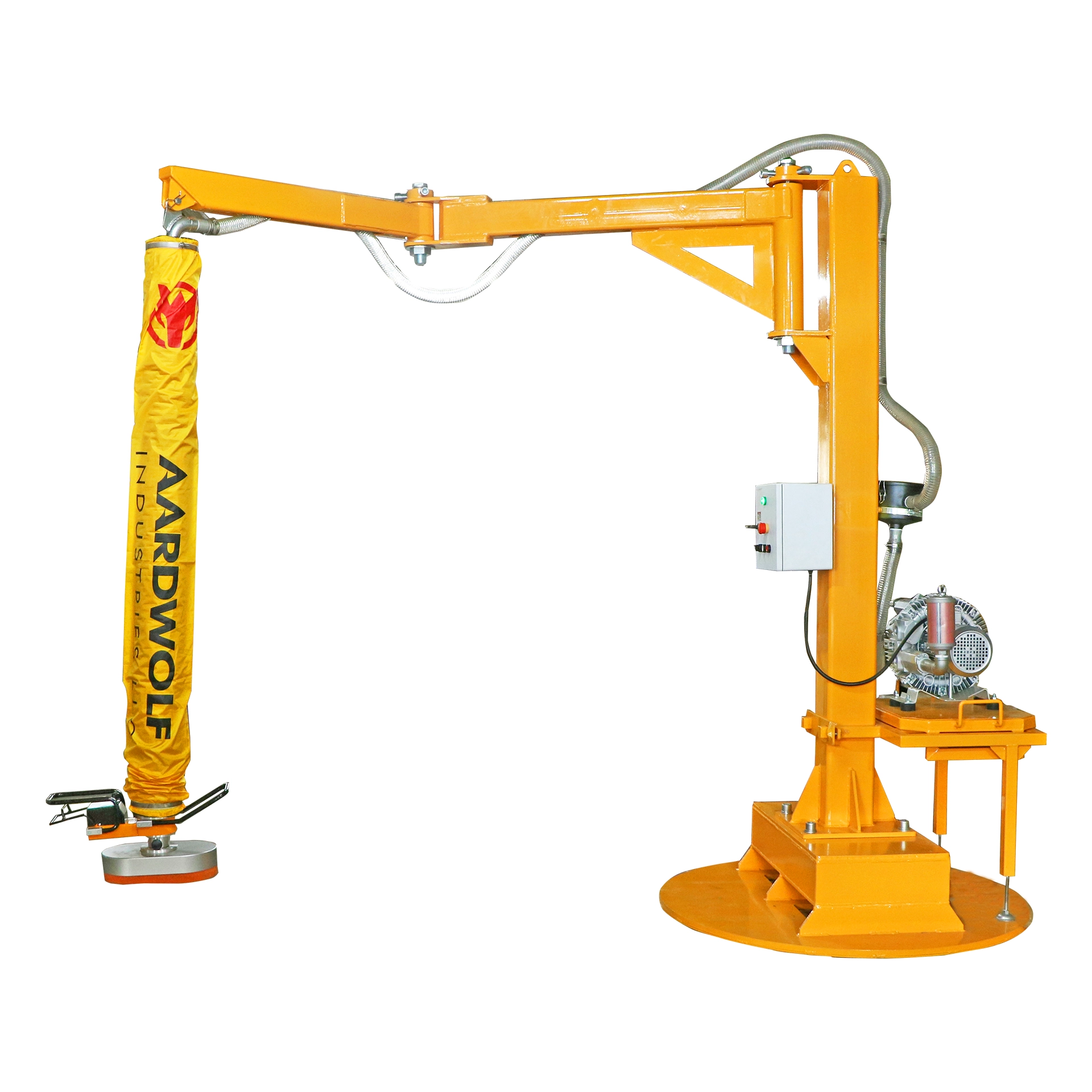

The new Aardwolf Vacuum Tube Lifter AVTL/CF3 enhances lifting operations with exceptional flexibility and efficiency. Designed to handle various materials like carton boxes, packs and slabs weighing up to 60kg (132lb), it boosts productivity and safety in industrial settings.

Features

High-Performance Vacuum Pump: Ensures high-speed, energy-efficient performance to enhance operational efficiency.
Versatile Operation Modes: Offers manual and remote operation modes for effortless adaptation to different needs.
Comfortable Head: Features an ergonomic Control Hand and top gate valve for precise control during lifting and releasing operations.
Foldable Two-Joint Crane: Designed for easy storage and maneuverability, optimising space when not in use.
Movable Counter Base: Facilitates easy positioning and stability, ensuring uninterrupted workflow during lifting operations.
Flexible Pad Options: Plunger knobs allow quick switching between pads, accommodating various lifting requirements seamlessly.

Specifications

Fixed crane information:

Item	Metric
Fixed crane capacity	100 kg
Height of the crane	3151 mm
Tube size of the crane	180 mm
Aluminium frame length of the crane	3260 mm
Lifting capacity of the vacuum head (rectangular pad)	60 kg
Vacuum pump flow	120 m³/hour

Optional vacuum head (round pad):

Item	Metric
Working load limit	35 kg
Vacuum pump flow	40–48 m³/hour
