General

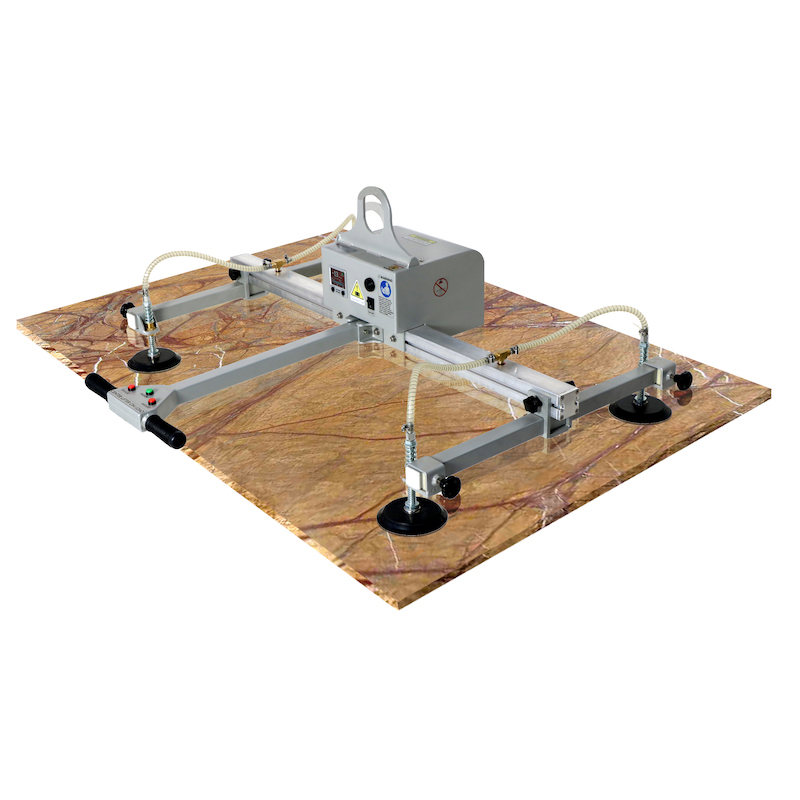

The AVLB4 is designed for the horizontal lifting of glass, laser cutters, metal sheets, and panels. In addition, the compact design makes it easy to hook onto a hoist.
Features
- Vacuum tank.
- Aluminum construction, lightweight.
- Audio/visual alarm system.
- Attach/release material by pressing a Vacuum or two Release buttons.
- Easy to operate.
- Battery charger.
Specifications
|
Metric
|
Imperial
|
|
| Pad diameter | 150 mm | 6″ |
| Working load limit | 160 kg | 353 lb |
| Net weight | 28 kg | 62 lb |
| Gross weight | 40 kg | 88 lb |
| Packaging dimensions | L.1350xW.300xH.510 mm | 53″x12″x20″ |
- Battery information for the lifter
| Power supply | 12V |
| Battery capacity | 6.0Ah |
| Adapter | DC 5V-1A |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Non-stop working time | 2.5 hours |
| 6-month warranty |
- Motor information
| Vacuum flow rate | 32.5 liters/minute |
| Motor | 12V-6A |
