General

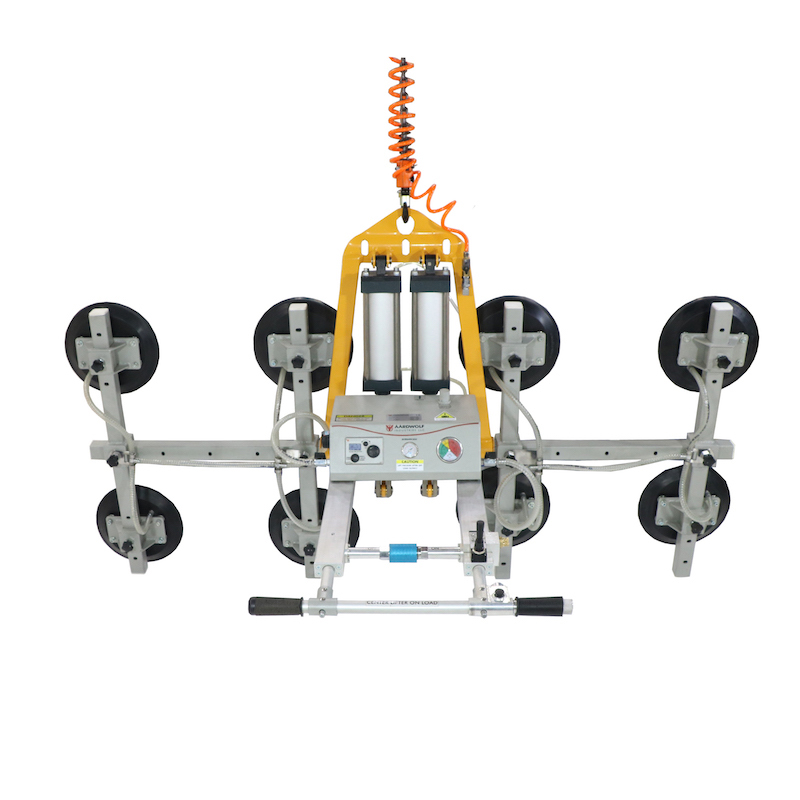

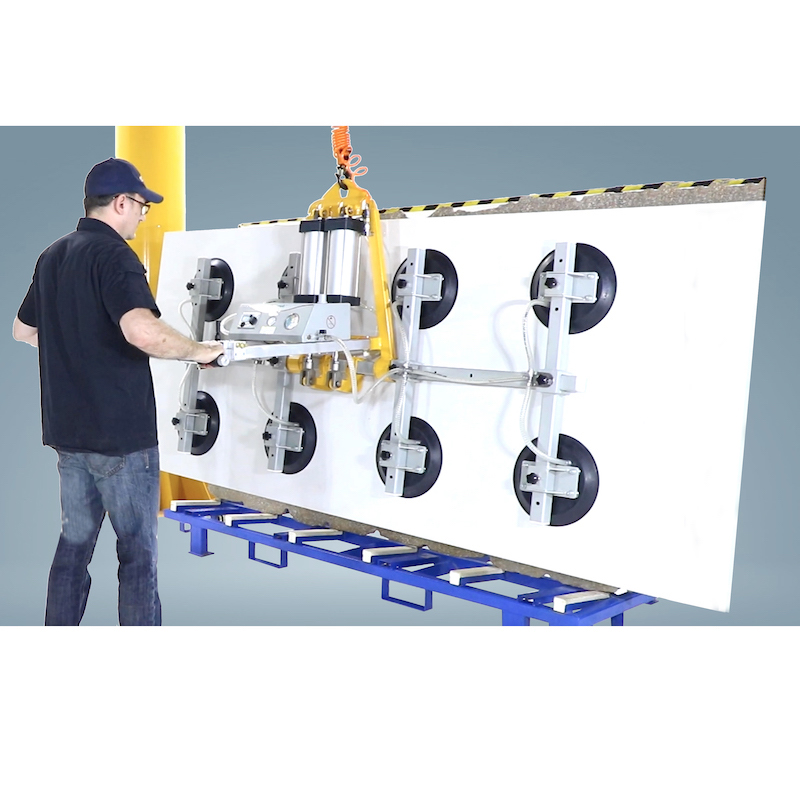

This vacuum lifter is suitable for lifting porcelain and glass sheets in large sizes. Features rugged construction with the added ability to lift and tilt the slab materials.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90°.
- Automatic vacuum pumping if vacuum loss occurs.
- Acoustic and visual alarm system.
- Attach/release material with an ON/OFF slide valve.
Specifications
|
Metric
|
Imperial
|
|
| Number of pads | 8 | – |

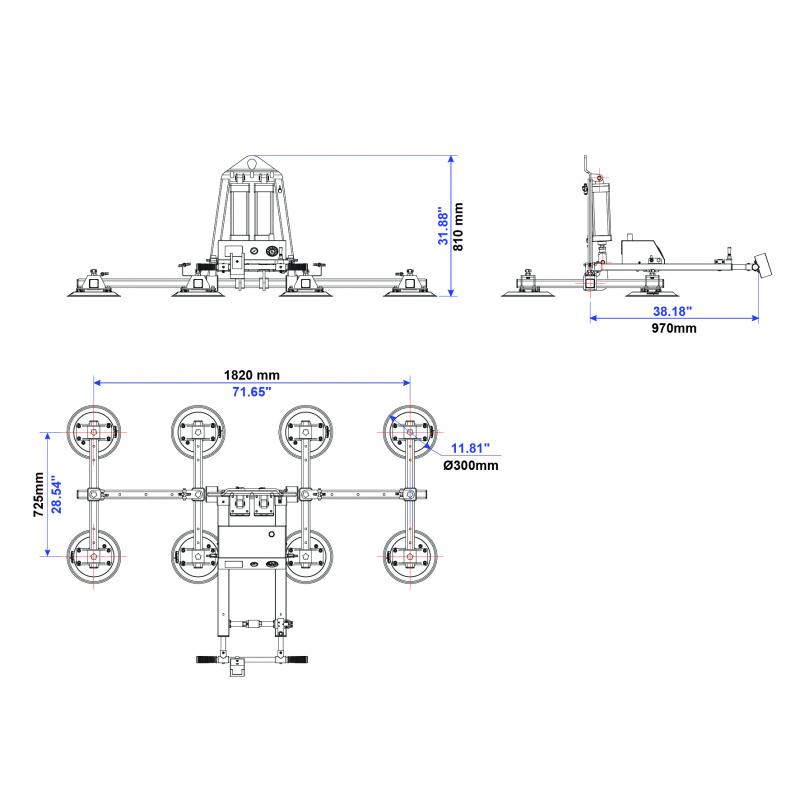

| Pad diameter | seal to seal:300 mm | 11.8″ |
| Working load limit | Vertical: 400 kg Horizontal: 800 kg |
882 lb 1764 lb |
| Net weight | 108 kg | 238 lb |
| Gross weight | 135 kg | 298 lb |
| Packaging dimensions | L.2050xW.430xH.960 mm | 80.7″x17″x37.8″ |
- Battery information for the device
| Code battery | GBA 12V 2.0Ah Bosch |
| Type battery | Lithium-ION |
| Voltage | 12V |
| Current | 2.0Ah |
| Quantity | 1 |
| Continuous operation time with mode-saving pressure | 2 hours |
| Working time with mode saving pressure | 6 hours |
| Continuous operation time with mode audio alarm only | 120 hours |
| Working time with mode audio alarm only | 360 hours |
- Battery charger
| Code battery | GAL 12V-40 Bosch |
| Input supply voltage | 220-240VAC |
| Output voltage | 12V |
| Output current | 4.0Ah |
| Quantity | 1 |
| Full charger time | 0.5 hour |
| Weight | 460 gram |
- Compressed air requirement
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
