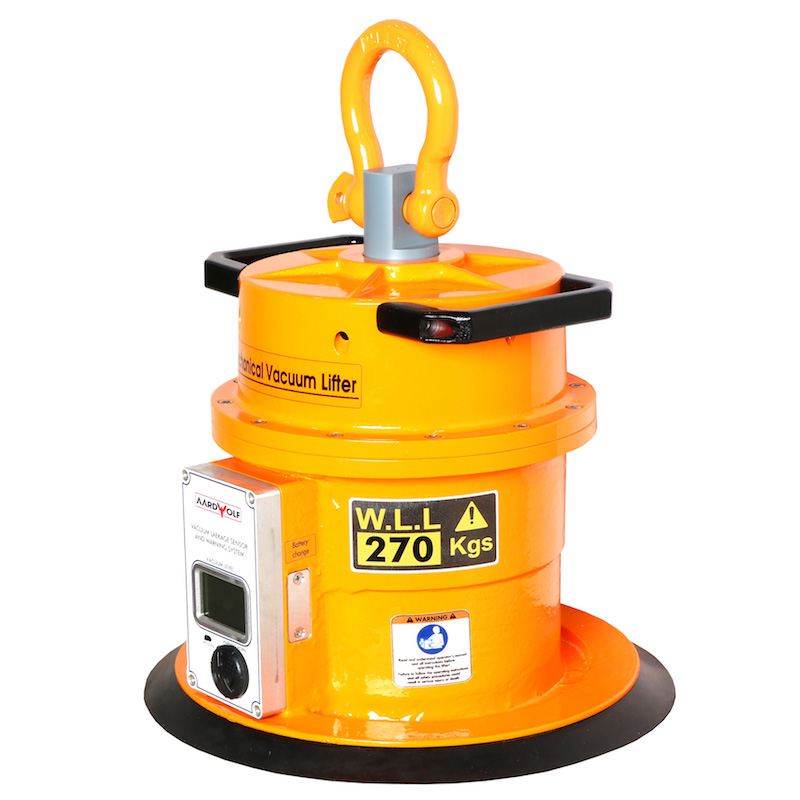

General
No power source is required. It is ideal for the horizontal handling of non-porous sheet and plate material such as diamond-sawn or polished granite, polished engineered stone, and all types of metals, plastics, and fiberglass. An automatic self-cycling valve at the piston’s bottom controls the vacuum grip-and-release cycle.
Features
- Self-powered and self-cycling.
- A non-rechargeable 9V battery powers the audio alarm system.
- Immediately ready for operation.
- Low maintenance.
- Aluminum construction.
- Lightweight.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 1 | – |
| Pad diameter | Seal to seal: 300 mm | 11.8″ |
| Working load limit | 270 kg | 595 lb |
| Net weight | 22 kg | 49 lb |
| Gross weight | 27 kg | 60 lb |
| Packaging dimensions | L.390xW.390xH.430 mm | 15.3″x15.3″x17″ |
- Battery information for the alarm system
| Power supply | 9 V non-rechargeable |
| 6-month warranty | – |
