General

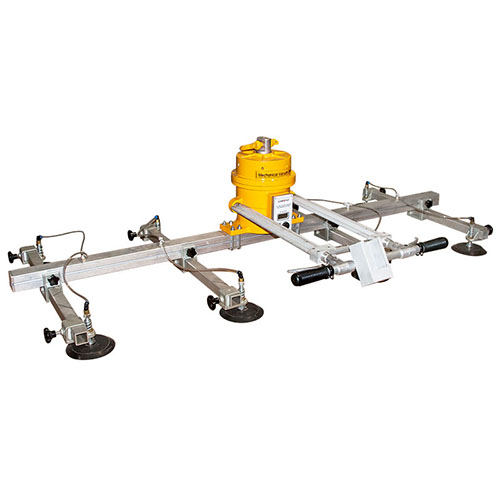

Self-power and self-cycling energy. An independent solution for the horizontal handling of non-porous sheet and plate material. It has a telescopic front handlebar, adjustable beams, cross members, and vacuum pads. The battery-operated warning device ensures a high degree of work safety.
Features
- Self-powered and self-cycling.
- Audio alarm system.
- Independently powered by a non-rechargeable 9V battery.
- Use the vacuum gauge for a visual warning of low vacuum.
- Telescopic front handle.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 8 | – |
| Pad diameter | Seal to seal: 120 mm | 4.7″ |
| Working load limit | 250 kg | 551 lb |
| Net weight | 63 kg | 139 lb |
| Gross weight | 103 kg | 227 lb |
| Packaging dimensions | L.2270xW.380xH.790 mm | 89.4″x15″x31″ |
- Battery information for the alarm system
| Power supply | 9V non-rechargeable |
