General

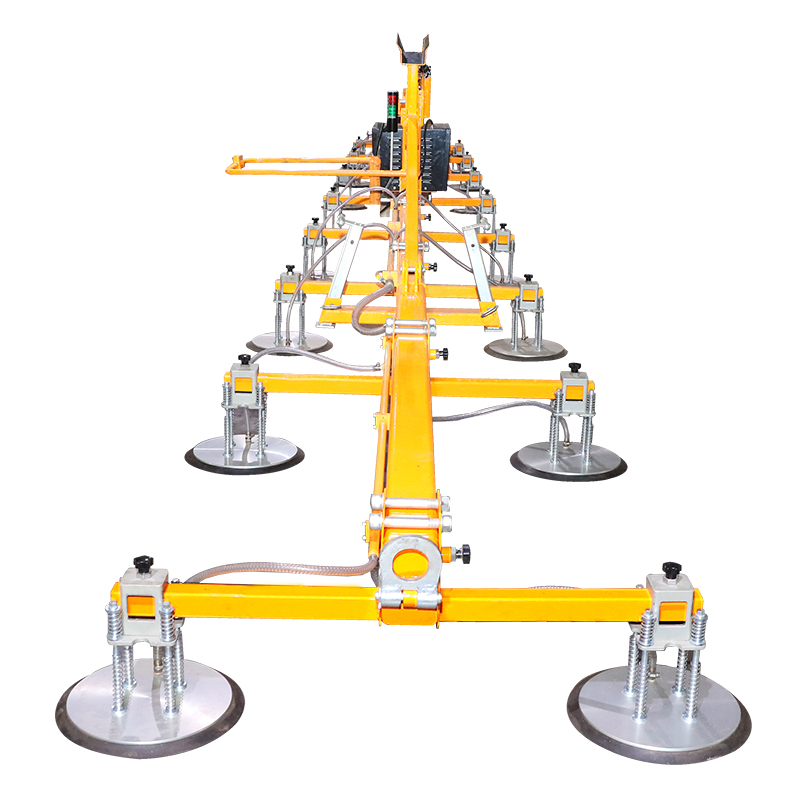

The AELVP16-2000 is a specialised vacuum lifter, designed for lifting long and bulky steel slabs. With the ideal length (11m) and firm structure, AELVP16-2000 is the perfect solution for working on large construction sites. The flexible beam can be contracted or extended easily on the job site.
Features
- The AELVP16-2000 is powered by an electrical cabinet consisting of main and sub motors for vacuum air suction and the lifting of steel slabs with 16 suction pads
- The lifter is equipped with a backup battery to ensure safety during lifting in the event of a power outage
- The flexible beam can be contracted or extended with 8 or 16 suction pads allowing the lifter to handle steel slabs of different sizes
Specifications
|
Metric
(mm-kg)
|
Imperial
(inch-lbs)
|
|
| Number of pads | Contracted: 8 pads Extended: 16 pads |
– |
| Length-width of steel sheet |
8 pads: 6000×1800 16 pads: 12000×1800 |
236×71 472×71 |
| Pad diameter | 386 | 15.2 |
| Working load limit | 2000 | 4409 |
| Net weight | 750 | 1653 |
| Gross weight | 920 | 2028 |
| Packaging dimension | 6300x1260x1500 | 248x50x59 |
- Battery information for alarm system
| Power supply | 3.7V Lipo battery |
| Battery capacity | 2000mAhx1 |
| Standby time | 5000h |
| Charging cycle | 1000 times |
| Adapter | DC 12V-3A |
| Charging time | 2h |
| Non-stop working time | 7h |
| 6-month warranty | – |
- Motor information
| Vacuum flow rate | 7.6m3/h (50Hz) – 8.7m3/h (60Hz) |
| Imput supply | AC 220 – 1Phase 50/60Hz |
