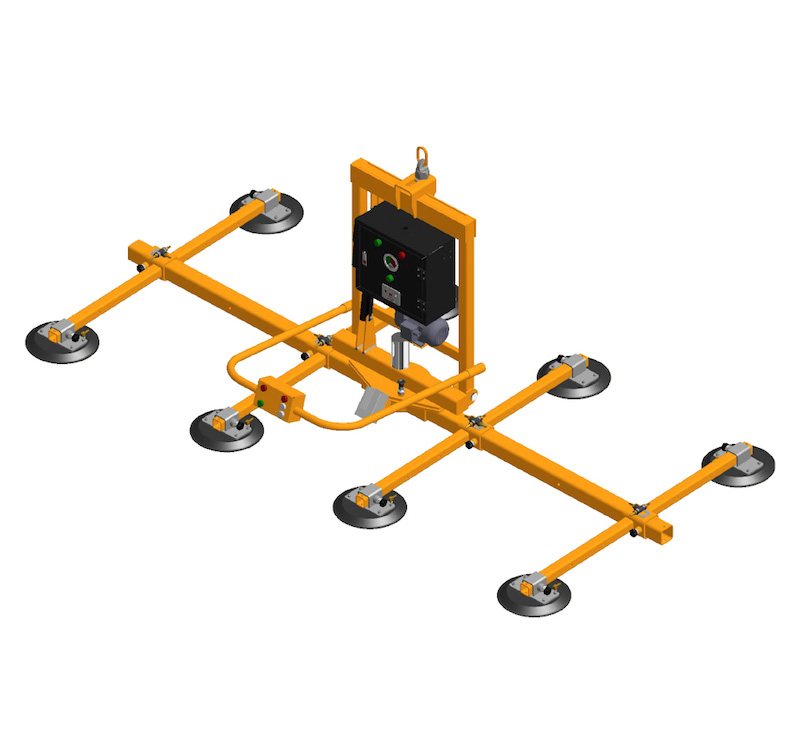

General
With outstanding features supporting glass materials handling, the Electric Powered Vacuum Glass Lifter is the solution for users seeking safety and efficiency.
Features
- Adjustable suction cups based on material sizes.
- The control box on the handle for tilting and attaching/releasing materials.
- Automatic vacuum pumping once vacuum loss occurs.
Specifications
|
Metric
|
Imperial
|
|
| Pad diameter | 300mm overall 280mm seal to seal |
11.8″ 11″ |
| Tilting | 90 degrees | – |
| Manual rotation | 360 degrees | – |
| Working load limit | 500 kg | 1102 lb |
| Net weight | 204 kg | 450 lb |
| Packaging dimensions | 3100x1450x510 mm | 122″x57″x20″ |
| Electric powered | 220V-50hz, IP67 (3P) |
| Linear actuator for tilting | 12V |
