General
The Forklift Boom is a telescoping three-section rectangular tube steel boom for use on 3-tonne forklift trucks and larger. It offers versatility with maximum visibility for the driver.
Features
- The boom extension is designed so it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
Specifications
|
Metric
|
Imperial
|
|

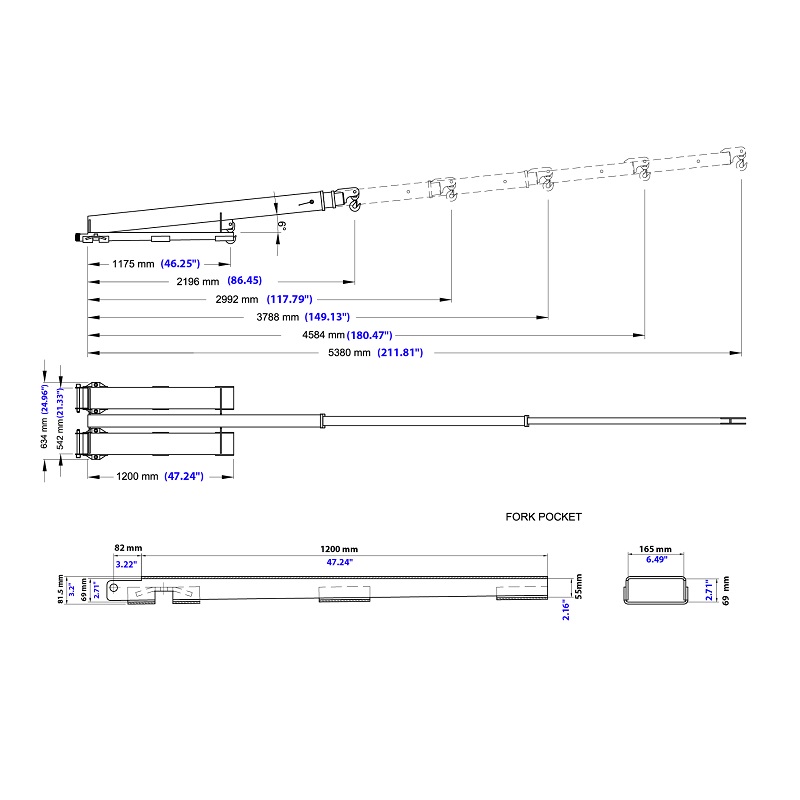

| Manual telescope | 2196 – 5380 mm | 86.5″ – 212″ |
| Increment | 796 mm | 31.3″ |
| Slip onto a fork designed with fork pocket |
165×65 mm | 6.5″x2.6″ |
| Fork pocket | 377 mm | 14.8″ |

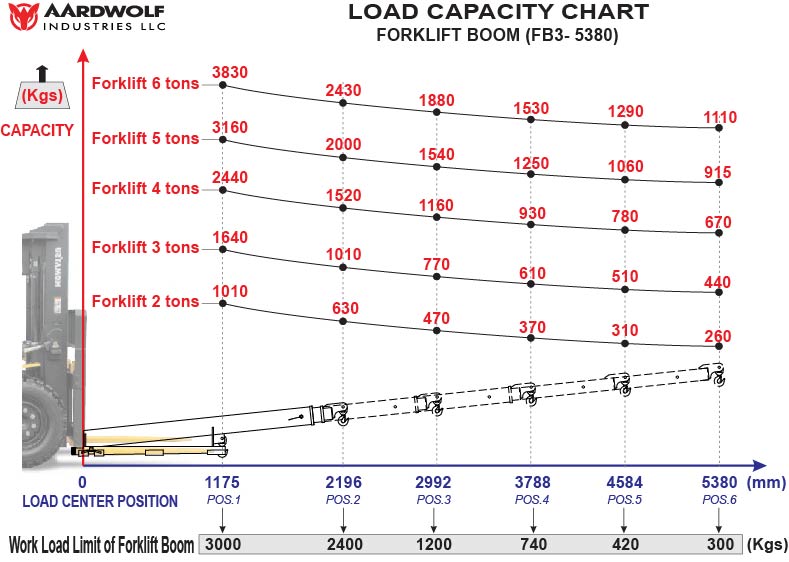

| Working load limit | Retracted: 2400 kg Extended: 300 kg |
5291 lb 661 lb |
| Net weight | 163 kg | 359 lb |
| Gross weight | 173 kg | 381 lb |
| Packaging dimensions | L.2350xW.630xH.580 mm | L.92.5″xW.24.8″xH.22.8″ |
