A jib crane is one of the most versatile and cost-effective lifting solutions for workshops, warehouses, and manufacturing facilities. However, before integrating this equipment into your operations, it’s essential to understand the jib crane installation requirements for your specific space. Failing to prepare adequately can lead to performance issues, safety hazards, and costly rework.
This guide outlines all the jib crane installation requirements—including structural, spatial, electrical, and safety considerations—based on real-world experience, verified expertise, and trusted industry standards. Whether you’re installing a freestanding jib crane, a wall-mounted jib crane, or an articulating jib crane, this comprehensive checklist will ensure success from day one.
✅ Already planning an install? Don’t miss: Jib Crane Installation Process: From Prep to Testing
What Is a Jib Crane?
A jib crane consists of a horizontal beam (jib or boom) that supports a hoist, mounted to either a vertical column or a wall. It allows for material handling in a semi-circular or full circular motion depending on the model.
Types of Jib Cranes:

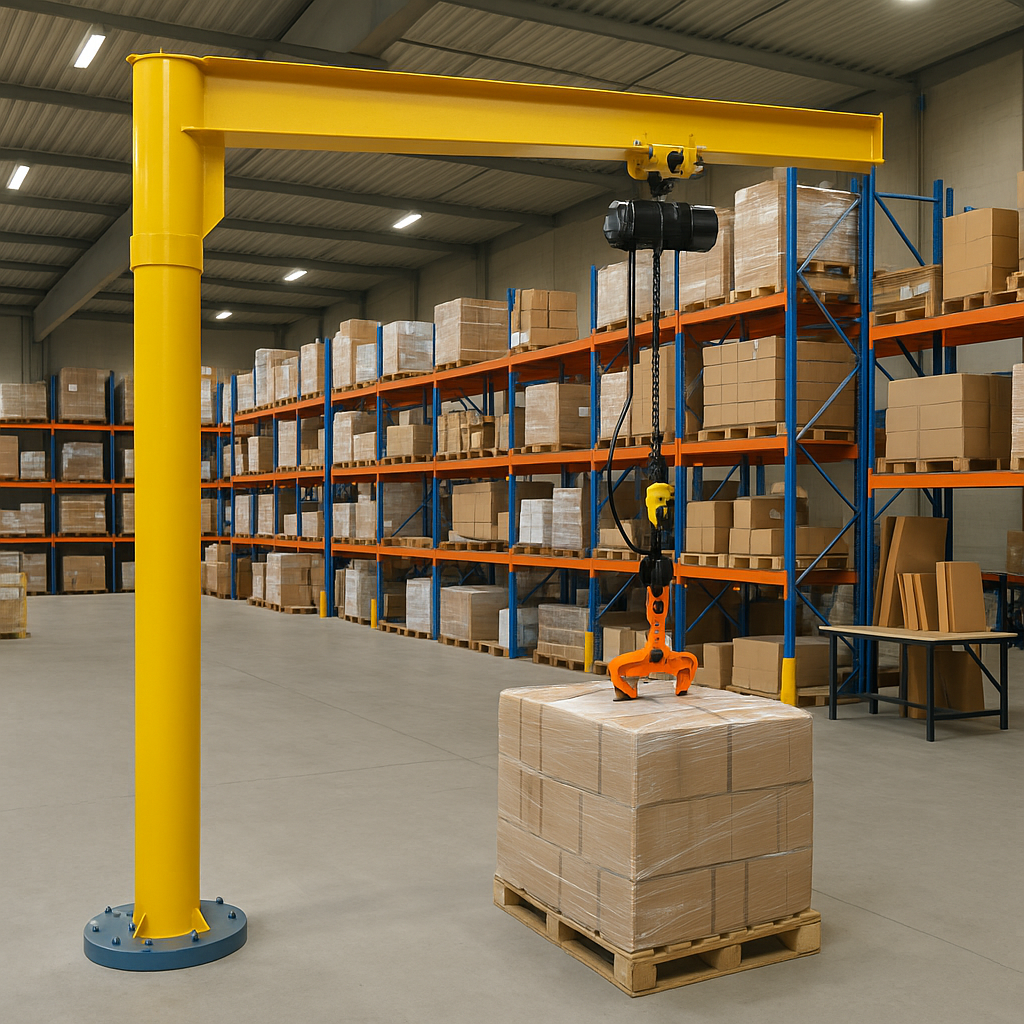

- Freestanding jib crane – Installed directly into the floor with a full 360° rotation

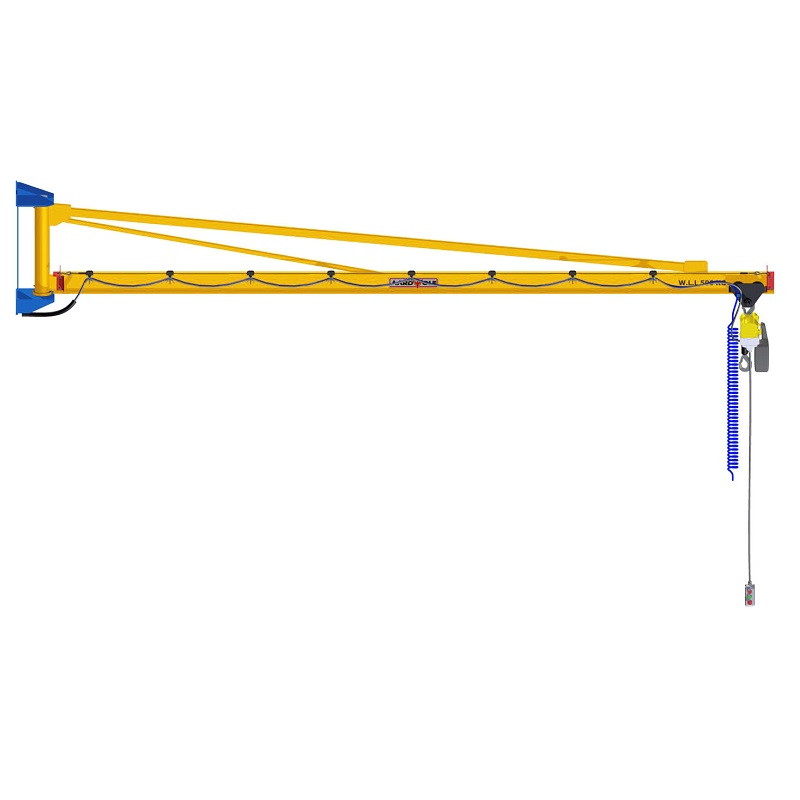

- Wall-mounted jib crane – Mounted to an existing structure with 180° rotation
- Mast-type jib crane – Floor and ceiling supported; no foundation required
- Mast mounted jib crane – Stronger alternative for limited ceiling height
- Articulating jib crane – Features two swivel arms for superior range in tight spaces
💡 Browse options: for more jib crane products
1. Jib Crane Installation Structural Requirements
A. Foundation (Freestanding Models)
A freestanding jib crane requires a reinforced concrete foundation to anchor the mast securely and handle dynamic loads.
Specs to consider:
- Depth: 300mm to 1000mm depending on capacity
- Width: Typically 1m² or more
- Concrete grade: Minimum 3000 psi with rebar reinforcement
📌 Planning a floor-mounted model? Review Jib Crane Installation Cost: What You Need to Know
B. Wall Strength (Wall-Mounted and Articulating Cranes)
For wall-mounted or articulating jib cranes, verify:
- The wall is load-bearing and capable of handling both static and dynamic loads
- Structural columns are available for through-bolting if wall integrity is questionable
- Backup plates and reinforcement brackets are included
C. Ceiling Clearance (Mast-Type and Articulating)
Check the height between the floor and ceiling to ensure:
- There’s enough vertical room for mast-type cranes
- The boom can rotate without obstructions
- The hoist has sufficient travel clearance
2. Spatial Requirements
A. Boom Swing Radius
You’ll need a clear operational area around the crane’s rotation path. Depending on crane design:
- 180° for wall-mounted
- 200°–360° for freestanding or mast-type
- More flexible paths for articulating cranes
Avoid obstructions like columns, shelving, or machinery.
B. Load Travel Area
Ensure:
- The path the load will follow is clear and obstacle-free
- There’s access for personnel and forklifts around the load zone

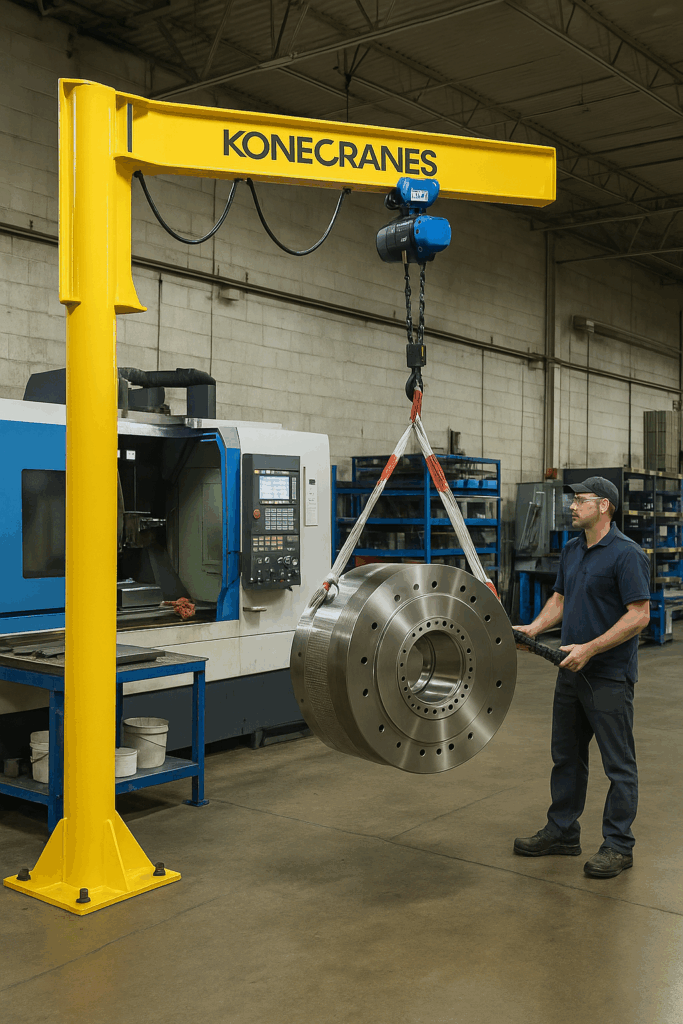

C. Workstation Integration
Position the crane close to:
- Assembly lines
- CNC machines
- Welding stations
- Loading docks
🚫 Avoid improper layouts with Jib Crane Installation Tips: Avoid Common Mistakes
3. Jib Crane Installation Electrical Requirements
A. Power Supply
For electric hoists or motorized trolleys, confirm:
- 3-phase or single-phase power availability
- Dedicated breaker and proper voltage rating (usually 220V–480V)
- Waterproof switch boxes for outdoor or humid environments
B. Control Setup
You may use:
- Pendant control
- Wireless remote
- Limit switches for safety
Electrical wiring must be routed safely away from the jib’s swing path and comply with local codes.
4. Jib Crane Installation Personnel and Tools
Hire certified crane installers who:
- Have experience with your chosen jib crane type
- Can ensure compliance with OSHA and ISO standards
- Will perform load testing and final inspection
Typical tools and equipment needed:
- Torque wrenches
- Forklifts or cherry pickers
- Core drill (for anchor holes)
- Load testing weights
Need a step-by-step breakdown? Check Jib Crane: How to Properly Install – Step-by-Step Guide
5. Load Testing and Certification
Post-installation testing is not optional—it’s legally required in many regions.
| Test Type | What It Involves |
|---|---|
| Static Test | Holding rated load without movement |
| Dynamic Test | Lifting, lowering, and rotating under load |
| Visual Check | All welds, fasteners, and connections examined |
Certified installers should document and submit test results for compliance.
6. Maintenance Space and Access
Ensure your facility allows easy access for:
- Lubricating pivot points and bearings
- Inspecting bolts and anchor plates
- Hoist service and repair
Design your layout with inspection zones or clearance paths so your maintenance crew can keep the crane in top condition.
7. Compliance and Safety Signage
Follow OSHA, ASME, and local safety codes by:
- Displaying load capacity plates on the boom
- Installing emergency stop buttons
- Using lockout/tagout for electrical work
🛠 For long-term safety, read Jib Crane Installation Process: From Prep to Testing
Sample Facility Readiness Checklist
| Requirement | Status |
|---|---|
| Concrete foundation thickness | ✅ |
| Wall column load-bearing verified | ✅ |
| Boom radius clear of obstructions | ✅ |
| Power circuit installed | ✅ |
| Certified installers hired | ✅ |
| Load test scheduled | ✅ |
| OSHA signage and permits posted | ✅ |
Final Thoughts: Plan Smart, Install Safer
The success of your jib crane depends heavily on how well your facility meets its installation requirements. From structural readiness to spatial layout and electrical setup, each factor plays a critical role in operational safety and efficiency.
Don’t cut corners—partner with trusted crane suppliers and experienced installers to ensure a flawless and compliant setup.
✅ Ready to move forward? Check out for more jib crane products to find a model that suits your needs and site layout.
Recommended Resources:
- Jib Crane Installation Tips: Avoid Common Mistakes
- Jib Crane Installation Cost: What You Need to Know
- Jib Crane Installation Process: From Prep to Testing
- Jib Crane: How to Properly Install – Step-by-Step Guide
Proper planning = safe, efficient lifting. Make your jib crane installation a success from day one.
