Jib crane installation is not just about assembling steel components and mounting a hoist—it’s about executing a precise, engineered plan to ensure safety, efficiency, and compliance. However, even minor errors during installation can cause significant downtime, reduce productivity, or result in costly retrofits and injuries.
In this guide, we explore the most common jib crane installation errors, their consequences, and how to avoid them—backed by expertise, engineering standards, and industry best practices.
📌 Before choosing an installer, see Jib Crane Installation Services: How to Choose a Provider
Why Jib Crane Installation Quality Matters
Jib cranes are highly efficient lifting systems designed for localized material handling. But their performance and safety heavily depend on correct installation. Errors such as misaligned booms, under-designed foundations, or improper wall anchoring are not only dangerous but also lead to unplanned shutdowns.
Whether you’re installing a freestanding jib crane, mast-type jib crane, wall-mounted jib crane, or articulating jib crane, precision in every phase is critical.
Top Jib Crane Installation Mistakes That Cause Downtime
1. Improper Foundation Design for Freestanding Jib Cranes
Issue: Freestanding models require deep-set concrete foundations with precise anchor bolt patterns. Skipping soil tests or underestimating base size leads to tilting or collapse under load.
Consequence: Vibration, arm drift, or full system failure—prompting immediate shutdown.
Best Practice: Work with structural engineers during planning and follow specs from the crane manufacturer.
🛠 Learn how to prepare properly in Jib Crane Installation Planning for Indoor and Outdoor Use

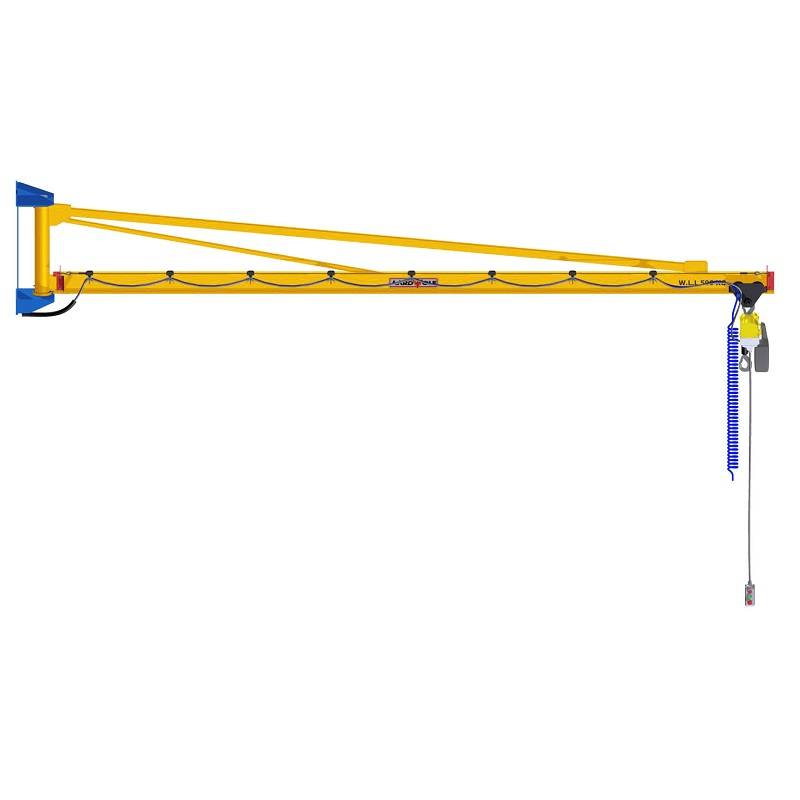

2. Incorrect Mounting of Wall-Mounted Jib Cranes
Issue: Bolting to insufficient structural walls (like non-load-bearing block or drywall) can cause shearing or crane detachment.
Consequence: Wall damage, equipment collapse, or operator injury—leading to long repair delays.
Best Practice: Only mount on engineered support columns or reinforced concrete walls as specified by ANSI standards.
3. Overlooking Ceiling Load for Mast-Mounted Jib Cranes
Issue: These cranes are stabilized by both the floor and a ceiling or beam. If the ceiling cannot handle the load, the structure may sag or fail.
Consequence: Structural cracks, reduced load capacity, or halted operations until re-engineered.
Best Practice: Conduct full ceiling load calculations and use certified brackets and ceiling plates.
4. Inadequate Boom Alignment and Leveling
Issue: Boom must be perfectly level to allow smooth trolley movement and prevent undue wear.
Consequence: Trolley jamming, load drift, uneven wear on the pivot, and safety hazards.
Best Practice: Use digital levels and torque tools to align and calibrate the boom post-installation.
5. Undersized or Incorrect Hoist Integration
Issue: Mismatched hoist capacity or travel speed may overload the arm or interfere with swing clearance.
Consequence: Motor strain, cable snapping, or electrical overloads.
Best Practice: Confirm hoist specs match the jib crane’s design load and swing radius.
Explore for more jib crane products compatible with the correct hoist systems.
6. Skipping Electrical Grounding and Surge Protection
Issue: Especially common with outdoor installations, skipping grounding can make the control system vulnerable to surges and shocks.
Consequence: Electrical failures, operator danger, or unresponsive hoist systems—requiring downtime for electrical repairs.
Best Practice: Always install earth grounding and weatherproof conduit with surge arrestors.
7. Improper Fastening of Pivot Bearings and Swing Mechanism
Issue: Bearings not seated or lubricated correctly will wear prematurely or seize under load.
Consequence: Reduced swing ability, vibration, and risk of operator strain or injury.
Best Practice: Follow manufacturer torque specs and use OEM-specified grease or bearing materials.
How Long Should a Proper Installation Take?
If done right, installation should proceed smoothly within standard timeframes. Rushed installations often increase the risk of these errors.
⏱ See: Jib Crane Installation Timeline: How Long Does It Take?
| Crane Type | Typical Install Time | Vulnerable to Errors Like… |
|---|---|---|
| Freestanding | 10–14 working days | Foundation misalignment, anchoring issues |
| Wall-Mounted | 5–7 working days | Unsupported mounting surfaces, bolt misplacement |
| Mast-Type | 7–10 working days | Ceiling load miscalculations, bracket shift |
| Articulating | 5–10 working days | Boom travel misalignment, swing restriction |
Reducing Risk: The Power of Planning
80% of installation errors are due to poor planning. Avoid these by:
- Reviewing site conditions before ordering the crane
- Consulting with engineers on load and reach
- Validating structure strength and floor condition
- Pre-coordinating with electricians, civil contractors, and safety officers
📝 Use tools like Jib Crane Installation Planning for Indoor and Outdoor Use to prepare for success.
Signs Your Jib Crane Installation Might Be Faulty
- Boom arm vibrates or shifts during swing
- Load does not stay level when suspended
- Trolley doesn’t move freely
- Anchor bolts show cracking around baseplate
- Crane feels unstable under load
📣 If any of these happen—stop usage immediately and contact your installer or crane provider.
Final Thoughts: Install It Right, Run It Long
Installation errors don’t just cost time—they endanger teams and disrupt productivity. A professional, well-planned jib crane installation not only ensures safety but maximizes your ROI.
Whether you’re setting up a freestanding jib crane outdoors or a wall-mounted version for warehouse use, don’t skip expert guidance.
👉 View for more jib crane products designed for hassle-free setup and long-term use.
